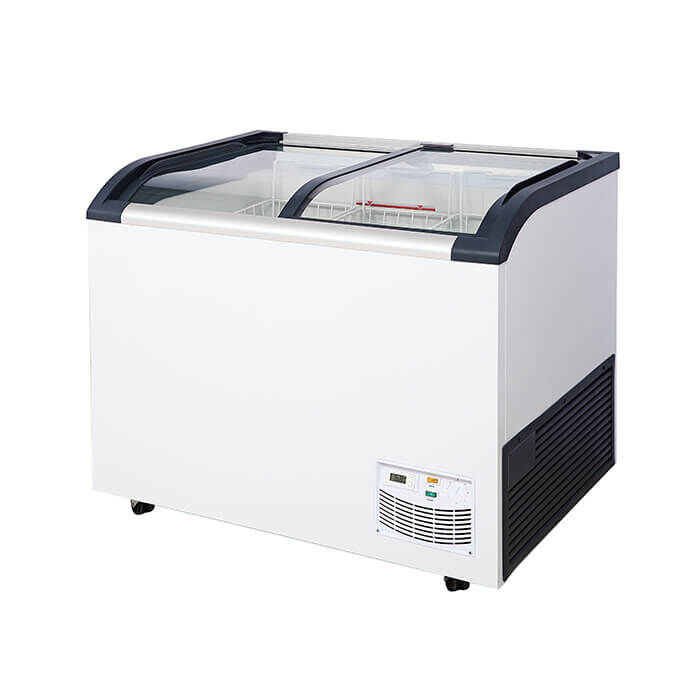

Single Curved

Features

• High COP compressor & Non-CFC refrigerant;

• Static cooling system;

• Mechanical temperature control;

• Free from maintenance ventilated motor fan for condenser&compressor;

• 2 curved tempered & low emissivity sliding glass lids;

• Standard interior LED illumination;

• White precoated galvanized steel exterior liner;

• White precoated aluminum interior liner;

• Integrated ABS+ aluminum alloy cabinet frame;

• Wire baskets;

• 4 swivel casters, front 2 with brake;

• Cabinet and canopy stickers for advertising;

• LED illuminated canopy optional;

• Copper tube evaporator optional;

• With CE/CB certification.


Parameters
ModelSD-220QSD-320QSD-420QSD-520QSD-620QSD-720Q
Gross volume (L)163285377470562654
Net volume (L)135203282353405530
TDA (Total display area) (㎡)0.320.460.60.730.861
Temperature (℃)≤-18℃≤-18℃≤-18℃≤-18℃≤-18℃≤-18℃
Basket quantity234567
Dimensions (WxDxH)730x675x8501000x675x8501250x675x8501500x675x8501750x675x8502000x675x850
20'GP Load423024201816
40'HC Load1349880665650
